2W series brass water solenoid valve
2W series 24V DC/220V AC normally closed direct acting brass water solenoid valve
Order code

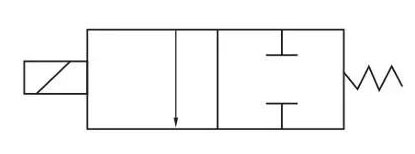

Symbol
Technical parameter

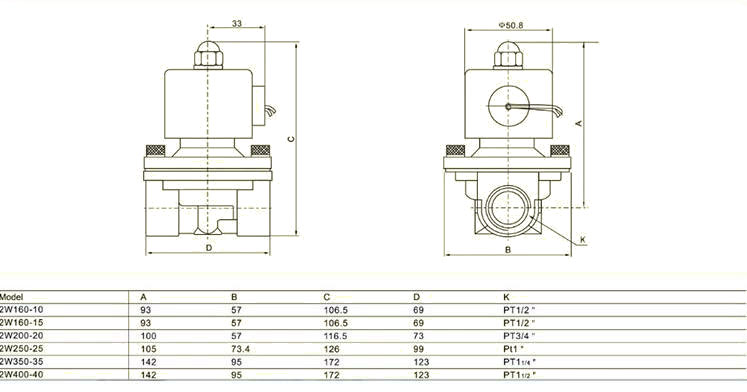

Dimension

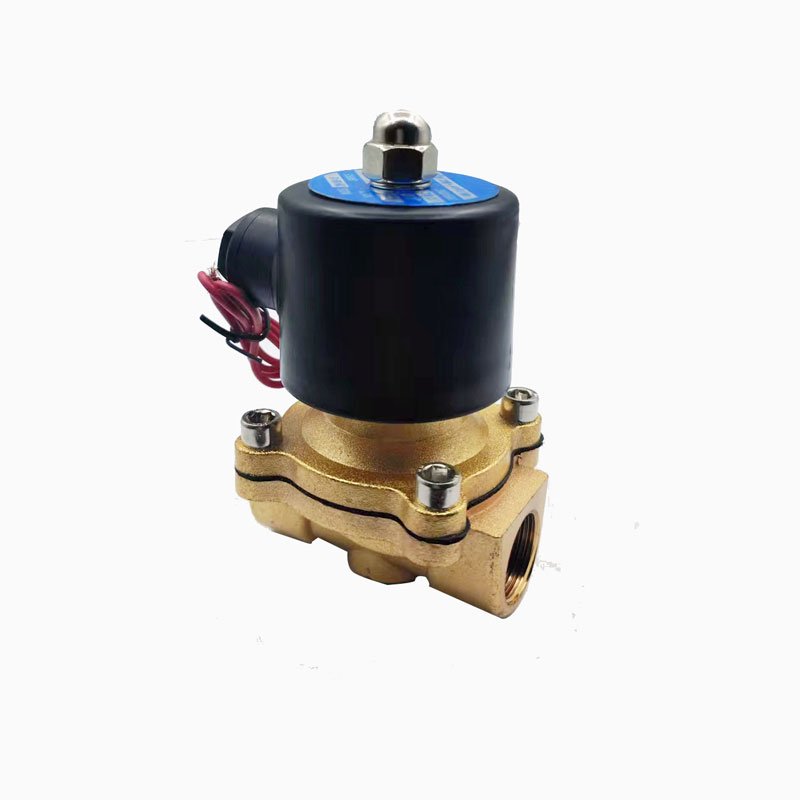

Normally closed brass electric solenoid valve
Model
2W160-10
2W160-15
2W200-20
2W250-25
2W350-35
2W400-40
2W500-50
Working medium
Air, water, oil, gas
Motion pattern
Direct acting Type
Type
Normal Closed Type
Normal Open Type
Orifice(mm)
16
16
20
25
35
40
50
CV
4.8
4.8
7.6
12
24
29
48
Pipe size
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
Material of valve body
Brass water valve
Operation fluid viscosity
20 CST(below)
Working pressure
Water: 0~5 bar, Air: 0~5, Gas:0~7
Max. pressure
10.5 bar
Temperature
-5~80 degrees centigrade
Material of Oil Seal
NBR, EPDM or VITON
