PH series pneumatic fittings

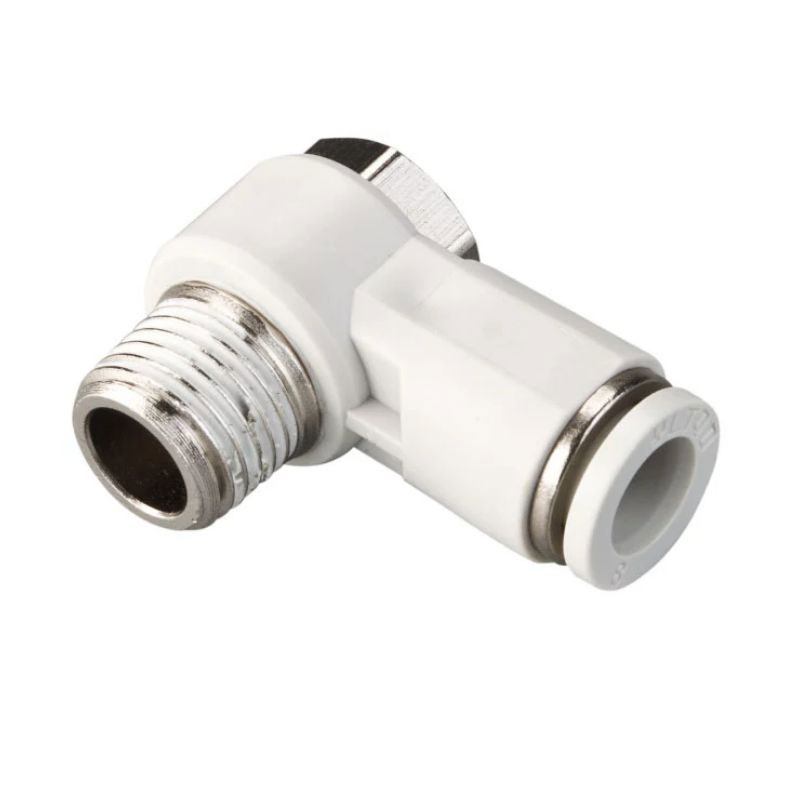

PH Series Pneumatic Plastic Pneumatic Hose Connector Air Pipe Fitting

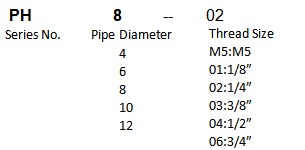

Order code
Technical parameter
Model
PH4-M5
PH4-01
PH4-02
PH6-M5
PH6-01
PH6-02
PH6-03
PH6-04
PH8-01
PH8-02
PH8-03
PH8-04
PH10-01
PH10-02
PH10-03
PH10-04
PH12-02
PH12-03
PH12-04
Fluid
Air
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Thread size
M5,1/8”,1/4”,3/8”,1/2”

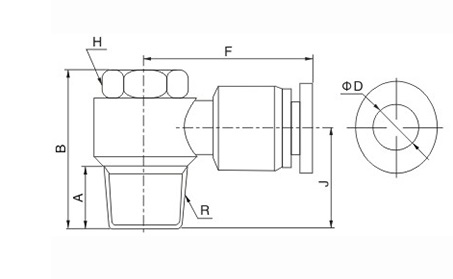

Dimension
Metric Type
φD
A
B
H
F
R
J
PH4-M5
4
4
19
8
20
M5
13
PH4-01
4
9
25
12
23
R1/8
17
PH4-02
4
11
28
15
24.5
R1/4
19
PH6-M5
6
4
19
8
23.5
M5
13
PH6-01
6
9
25
12
23.5
R1/8
17
PH6-02
6
11
28
15
25
R1/4
19
PH6-03
6
11
33
19
28.5
R3/8
20
PH6-04
6
12.5
36.5
22
30.5
R1/2
22.5
PH8-01
8
9
25
12
27
R1/8
17
PH8-02
8
11
28
15
28.5
R1/4
19
PH8-03
8
11
33
19
28.5
R3/8
20
PH8-04
8
12.5
36.5
22
31
R1/2
22.5
PH10-01
10
9
25
12
32
R1/8
17
PH10-02
10
11
28
15
32
R1/4
19
PH10-03
10
11
33
19
32
R3/8
20
PH10-04
10
12.5
36.5
22
34
R1/2
22.5
PH12-01
12
11
28
15
33
R1/8
19
PH12-02
12
11
33
19
35
R1/4
20
PH12-03
12
12.5
36.5
22
36
R3/8
20.5
Feature
.PU series One-touch tube fittings are used in pneumatics piping.
.The tube fittings come in a wide way variety of models to meet all your needs in pneumatics piping
.Even after installation,the direction of the tube can be changed freely.
.Nickel-plated metal body ensures Anti-Corrosion and Anti-Contamination.
.All R and NPT threads are Pre-Coated sealant.
.All cylindrecal threads are standard with O-Ring seals.
