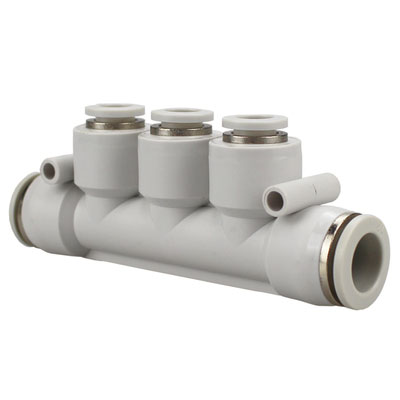

PK series pneumatic fittings
5 Ports Quick Connector One Pneumatic Air Fittings Plastic pipe Joint
Order code
Technical parameter
Model
PK-4
PK-6
PK-8
PK-10
PK-12
Fluid
Air
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Tube outer size
4mm,6mm ,8mm,10mm,12mm

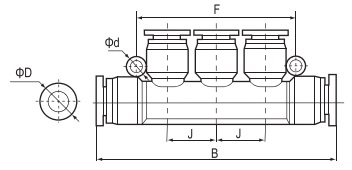

Dimension
Metric Type
φD
φD1
φD2
H1
φd
PK4
4
62.4
36.8
12
2.5
PK6
6
68.6
54.8
17.5
4
PK8
8
80.5
54.8
17.5
4
PK10
10
91.4
62.5
20.4
4
PK12
12
112
71
23
4
Feature
.PK series plastic five-way quick pneumatic connector is small volume ,high presure resistance ,high tensile resistance
.A wide range of models are available
.Durable, quality assurance
