PEG series pneumatic fittings

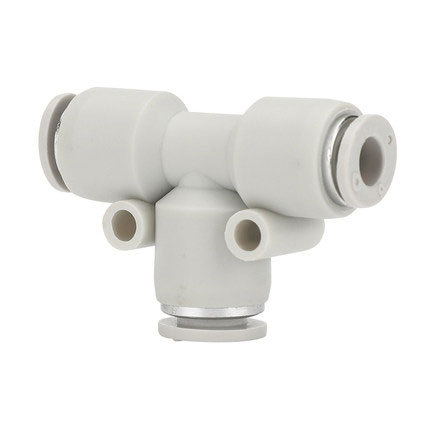

PEG series T type hose fittings 3 way plastic tee tube connector
Order code
Technical parameter
Model
PEG6-4
PEG8-4
PEG8-6
PEG10-6
PEG10-8
PEG12-8
PEG12-10
Fluid
Air
Max. Pressure
0-1.0Mpa
Temperature
0℃~60℃
Applicable tube
PU /Nylon tube
Outer diameter of Tube
4mm/6mm/8mm/10mm/12mm/14mm/16mm

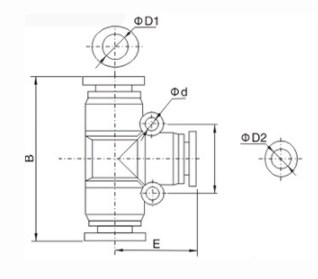

Dimension
Metric Type
ΦD1
ΦD2
B
E
F
φd
PEG6-4
6
4
40
20.5
16
3.5
PEG8-4
8
4
44
23
20
4.5
PEG8-6
8
6
45
23
20
4.5
PEG10-6
10
6
54
28.5
24
4
PEG10-8
10
8
55
28.5
24
4
PEG12-8
12
8
57
29.5
27
5
PEG12-10
12
10
59
29.5
27
5
PEG16-12
16
12
69
35
33
4
Feature
PEG 3 way tee type changing size plastic quick connector pneumatic Push in Fittings are used in pneumatic piping. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping. Even after installation, the direction of the tube can be changed freely
