English
Fittings -
PD series pneumatic fittings PD series pneumatic fittings
產(chǎn)品參數(shù)

PD Series T-type male thread push-in type straight three-way one touch pneumatic fittings

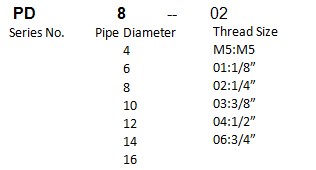

Order code


Technical parameter

Model

PD4-M5

PD4-01

PD4-02

PD4-03

PD6-M5

PD6-01

PD6-02

PD6-03

PD6-04



PD8-M5

PD8-01

PD8-02

PD8-03

PD8-04

PD10-01

PD10-02

PD10-03

PD10-04

PD12-01

PD12-02

PD12-03

PD12-04

PD14-02

PD14-03

PD14-04

PD16-02

PD16-03

PD16-04

PD16-06

Fluid

Air,Water

Max. Pressure

1.32Mpa(13.5kgf/cm2)

Pressure range

Normal pressure

0~0.9Mpa(0~9.2kgf/cm2)

Low pressure

-99.99~0Mpa(-750~0mmHg)

Temperature

0℃~60℃

Applicable tube

PU/Nylon tube

Thread size

M5,1/8,1/4,3/8,1/2

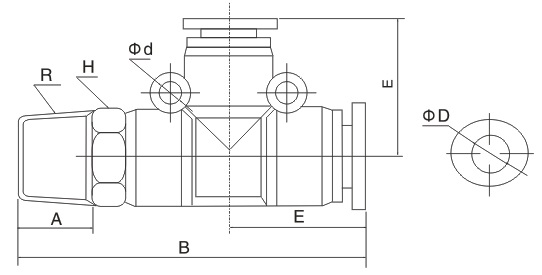

Dimension

Metric Type

φD

R

A

B

H

J

φd

PD4-M5

4

M5

4.5

37

18.5

10

/

PD4-01

4

R1/8

7

40.5

18.5

10

/

PD4-02

4

R1/4

9

42.5

18.5

14

/

PD6-M5

6

M5

4.5

  41

21

12

3.5

PD6-01

6

R1/8

7

44.5

21

12

3.5

PD6-02

6

R1/4

9

46.5

21

14

3.5

PD6-03

6

R3/8

10

48.5

21

17

3.5

PD6-04

6

R1/2

11

49

21

21

3.5

PD8-01

8

R1/8

8

47

23

14

4.5

PD8-02

8

R1/4

10

48

23

14

4.5

PD8-03

8

R3/8

10

50.5

23

17

4.5

PD8-04

8

R1/2

11

51.5

23

21

4.5

PD10-01

10

R1/8

8

56

26

17

4

PD10-02

10

R1/4

10

58

26

17

4

PD10-03

10

R3/8

10

59

26

17

4

PD10-04

10

R1/2

11

60

26

17

4

PD12-01

12

R1/8

8

58

27

19

5

PD12-02

12

R1/4

10

60

27

19

5

PD12-03

12

R3/8

10

61

27

19

5

PD12-04

12

R1/2

11

62

27

21

5


Feature

3 way Male Threaded Side Tee PD Pneumatic T Fitting are ready to use, offering fast assembly with no need for tools and offers a broad range of push-in pneumatic fittings to complement our established all brass,nickel plated , Pneumatic fitting series.
Nickel plated brass components provide corrosion and contamination resistance and an extended life. Pre applied thread sealant on all taper threads and recessed captive O-ring on parallel threads provides optimum rapid sealing Immediate quality sealing using silicone free U-packing.
