PV series pneumatic fittings

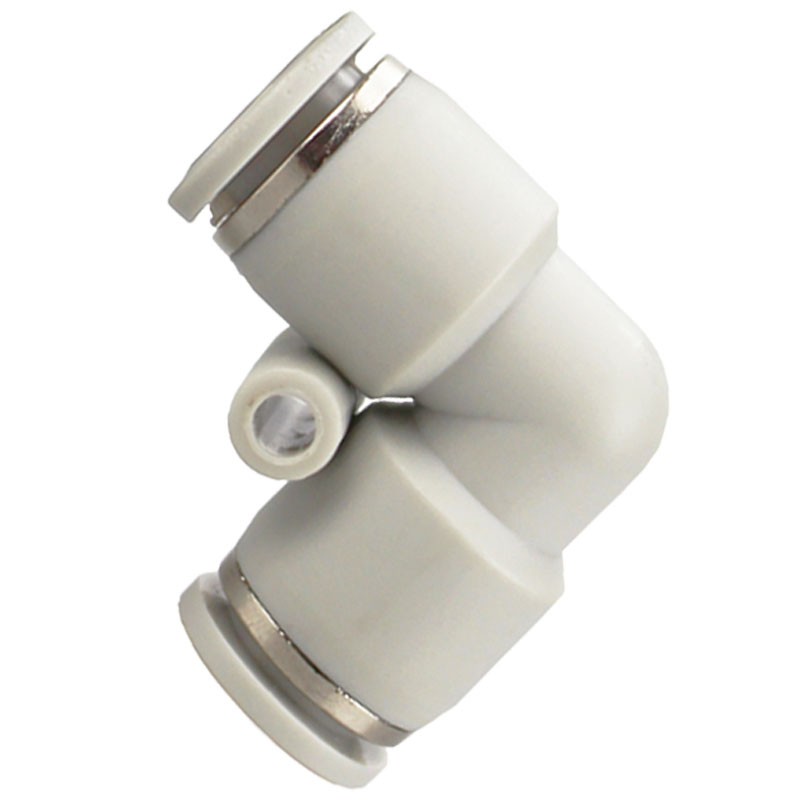

Union Elbows 8mm Stainless Steel PV Pneumatic Fittings PV-8
Order code
Technical parameter
Model
PV-4
PV6
PV-8
PV-10
PV-12
PV-14
PV-16
Fluid
Air
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Tube outer size
4mm,6mm ,8mm,10mm,12mm,14mm,16mm
Dimension
Metric Type
φD
E
F
φd
PV-4
4
18.5
-
3.5
PV-6
6
20.5
8
3.5
PV-8
8
23.5
10
4.5
PV-10
10
28
12
4
PV-12
12
30.5
14
5
PV-14
14
31
13
4
PV-16
16
34.5
17
4
Feature
. Quick and easy installation and removal, fittings can be reused multiple times
.Available in BSPT, BSPP, NPT, UNF, SAE and ISO thread types
.Fittings are extensively tested under vibration for leaks at 10kg/cm2 (140 psi)
.Specially design inner seal is capable to perform at temperature of up to 75 C
