LSA series pneumatic fittings

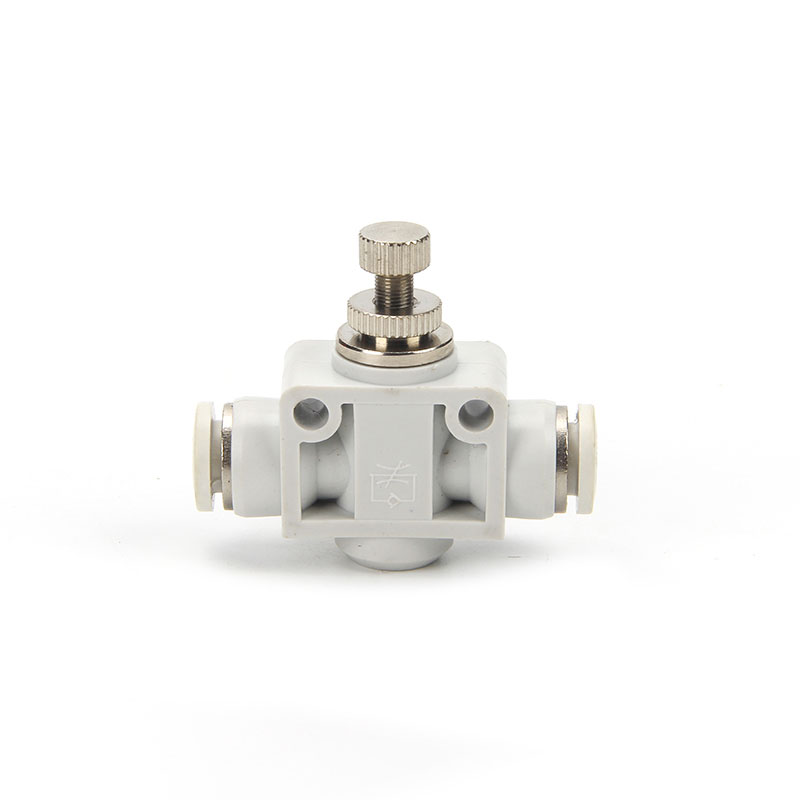

LSA series Pneumatic Throttle Flow Control Valve Quick Coupling Hose Fitting
Order code
Technical parameter
Model
LSA-4
LSA-6
LSA-8
LSA-10
LSA-12
LSA-14
LSA-16
Fluid
Air
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Tube outer size
4mm,6mm ,8mm,10mm,12mm,14mm,16mm

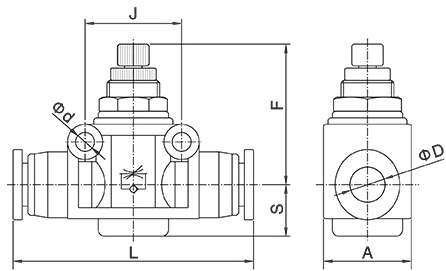

Dimension
Metric Type
φD
A
L
S
F
J
φd
Panel mount size
LSA-4
4
11
44
7
20
14
3.3
-
LSA-6
6
15
48
9.5
32
20
4
12.5
LSA-8
8
20
55
11.5
36
22
4.3
12.5
LSA-10
10
21
69
11
37.5
26
4.3
LSA-12
12
28
78
16
38.5
32
4.3
LSA-14
14
30
85
20
36
34
4.5
LSA-16
16
30
87
20
36
34
4.5
Feature
Model:LSA series throttle control valve pneumatic fittings
Materials: pvc
Thread : BSPT,BSP,NPT,Metric ect.
Temperature range: -20°C to max. +160°C
Preparation method: CNC lathe processed
Tube size:4mm,6mm,10mm,8mm,12mm,14mm,16mm
