NRL series pneumatic fittings

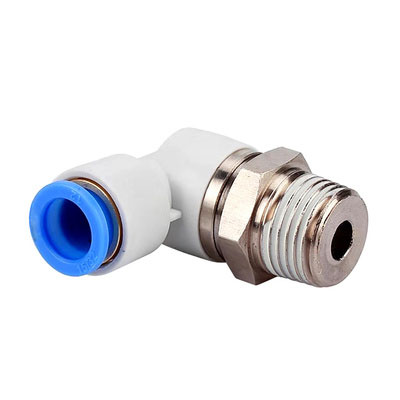

NRL KSL 360 speed rotary plastic quick connect pneumatic fitting

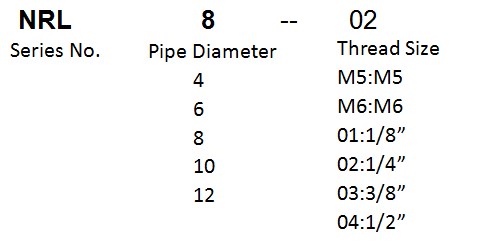

Order code
Technical parameter
Model
NRL4-M5
NRL4-M6
NRL4-01
NRL6-M5
NRL6-M6
NRL6-01
NRL6-02
NRL8-01
NRL8-02
NRL8-03
NRL10-02
NRL10-03
NRL10-04
NRL12-03
NRL12-04
Fluid
Air
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Thread size
M5,M6,1/8”,1/4”,3/8”,1/2”
Material of body
Brass

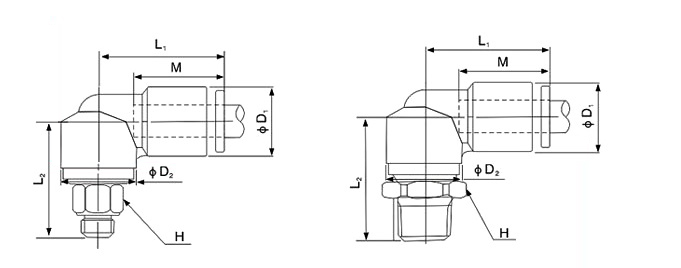

Dimension
Outer size
Metric Type
Thread
H
D1
D2
L1
L2
M
Φ4
NRL4-M5
(KSL04-M5)
M5*0.8
8
10.4
12
21
20.5
16
NRL4-M6
(KSL04-M6)
M6*1.0
21
NRL4-01
(KSL04-01S)
1/8
12
22
Φ6
NRL6-M5
(KSL06-M5)
M5*0.8
8
12.8
14
23
21
17
NRL6-M6
(KSL06-M6)
M6*1.0
21.5
NRL6-01
(KSL06-01S)
1/8
14
23
NRL6-02
(KSL06-02S)
1/4
26
Φ8
NRL8-01
(KSL08-01S)
1/8
17
15.2
17
26
26.5
18.5
NRL8-02
(KSL08-02S)
1/4
29.5
NRL8-03
(KSL08-03S)
3/8
31
Φ10
NRL10-02
(KSL10-02S)
1/4
22
15.5
22
31.5
34
21
NRL10-03
(KSL10-03S)
3/8
35
NRL10-04
(KSL10-04S)
1/2
38
Φ12
NRL12-03
(KSL12-03S)
3/8
24
20.9
24
34
36.5
22
NRL12-04
(KSL12-04S)
1/2
39.5
Feature
. Convenient one touch fittings provide instant tubing connections.
. Elliptical release ring facilitates pneumatic installations in confined spaces.
. Light manual pressure on the elliptical release ring is all that is required to instantly disconnect each tube-no
. All NPT & R(BSPT) thread are pre-coated with Teflon sealant and require no additional sealing.
