PL型彎頭螺紋彎通快插接頭
PL型直角彎頭螺紋彎通快插接頭PL4/6/8/10/12/14/16-M5/01/02/03/04

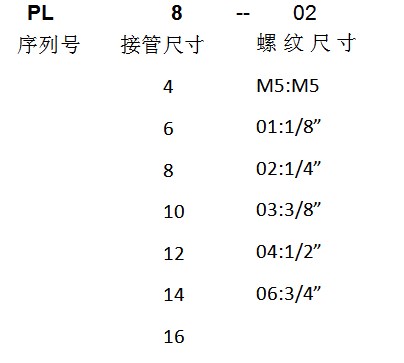

訂購代號
技術參數(shù)
| 型號 |
PL4-M5 PL4-01 PL4-02 PL4-03 |
PL6-M5 PL6-01 PL6-02 PL6-03 PL6-04
|
PL8-M5 PL8-01 PL8-02 PL8-03 PL8-04 |
PL10-01 PL10-02 PL10-03 PL10-04 |
PL12-01 PL12-02 PL12-03 PL12-04 |
PL14-02 PL14-03 PL14-04 |
PL16-02 PL16-03 PL16-04 PL16-06 |
|
| 流體介質(zhì) |
空氣 |
|||||||
|
最大壓力 |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
壓力范圍 |
標準壓力 |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
| 低壓 |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
溫度 |
0℃~60℃ |
|||||||
|
適用氣管 |
PU | |||||||
|
螺紋尺寸 |
1/8”,1/4”,3/8”,1/2” |
|||||||
| 本體材質(zhì) |
黃銅 |
|||||||
|
英制插管 |
公制插管 |
φD |
R |
A |
B |
H |
E |
φd |
|
PL5/32-M5 |
PL4-M5 |
4 |
M5 |
4.5 |
25 |
10 |
19.7 |
/ |
|
PL5/32-01 |
PL4-01 |
4 |
R1/8 |
7 |
26.5 |
10 |
19.7 |
/ |
|
PL5/32-02 |
PL4-02 |
4 |
R1/4 |
9 |
28 |
14 |
19.7 |
/ |
|
PL1/4-M5 |
PL6-M5 |
6 |
M5 |
4.5 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-01 |
PL6-01 |
6 |
R1/8 |
7 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-02 |
PL6-02 |
6 |
R1/4 |
9 |
29.5 |
14 |
20.8 |
3.5 |
|
PL1/4-03 |
PL6-03 |
6 |
R3/8 |
10 |
30.5 |
17 |
20.8 |
3.5 |
|
PL1/4-04 |
PL6-04 |
6 |
R1/2 |
11 |
32 |
21 |
20.8 |
3.5 |
|
PL5/16-01 |
PL8-01 |
8 |
R1/8 |
8 |
31.7 |
14 |
23.5 |
4.5 |
|
PL5/16-02 |
PL8-02 |
8 |
R1/4 |
10 |
33.8 |
14 |
23.5 |
4.5 |
|
PL5/16-03 |
PL8-03 |
8 |
R3/8 |
10 |
33.8 |
17 |
23.5 |
4.5 |
|
PL5/16-04 |
PL8-04 |
8 |
R1/2 |
11 |
35.5 |
21 |
23.5 |
4.5 |
|
PL3/8-01 |
PL10-01 |
10 |
R1/8 |
8 |
35.5 |
17 |
27.4 |
4.5 |
|
PL3/8-02 |
PL10-02 |
10 |
R1/4 |
10 |
37.5 |
17 |
27.4 |
4.5 |
|
PL3/8-03 |
PL10-03 |
10 |
R3/8 |
10 |
38 |
17 |
27.4 |
4.5 |
|
PL3/8-04 |
PL10-04 |
10 |
R1/2 |
11 |
38.6 |
21 |
27.4 |
4.5 |
|
PL1/2-01 |
PL12-01 |
12 |
R1/8 |
8 |
38 |
19 |
30.3 |
5 |
|
PL1/2-02 |
PL12-02 |
12 |
R1/4 |
10 |
39.5 |
19 |
30.3 |
5 |
|
PL1/2-03 |
PL12-03 |
12 |
R3/8 |
10 |
40.5 |
19 |
30.3 |
5 |
|
PL1/2-04 |
PL12-04 |
12 |
R1/2 |
11 |
42 |
21 |
30.3 |
5 |
|
- |
PL14-03 |
14 |
R3/8 |
12 |
42.5 |
24 |
30.3 |
4 |
|
- |
PL14-04 |
14 |
R1/2 |
15 |
45 |
24 |
30.3 |
4 |
|
- |
PL16-03 |
16 |
R3/8 |
15 |
50 |
24 |
34 |
4 |
|
- |
PL16-04 |
16 |
R1/2 |
15 |
50.5 |
27 |
34 |
4 |
