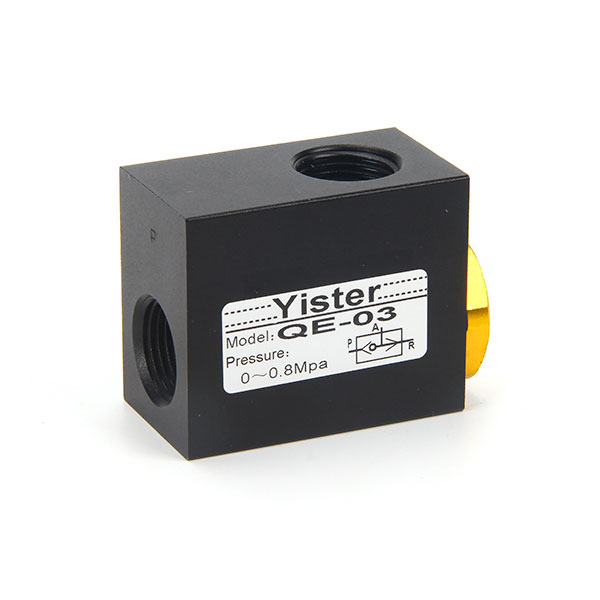

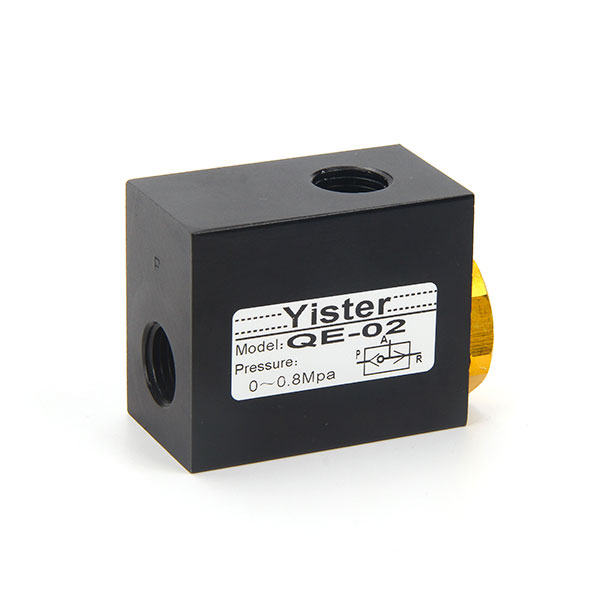

QE Series Quick Exhaust Valve
QE Series Aluminum Alloy Quick Exhaust Valve QE-01 QE-02 QE-03 QE-04 Air Quick Release Valve

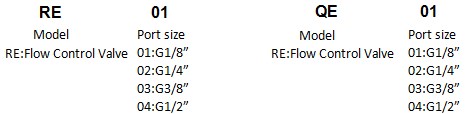

Order code
Symbol
Technical parameter
Model No
RE-01
QE-01
RE-02
QE-02
RE-03
QE-03
RE-04
QE-04
Fluid
Air
Port size
G1/8”
G1/4”
G3/8”
G1/2”
Pressure range
0-0.95MPa
Temperature
-5℃~60℃

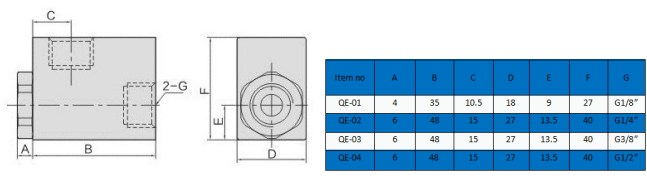

Dimension
Feature
QE quick exhaust valve is generally installed on the pipe line between the cylinder and reversal valve and near the cylinder, which directly discharge the air from cylinder without passing the reversal valve and thus to achieve the goal of fast reversion of cylinder.The effect on improving cylinder speed is especially obvious.
