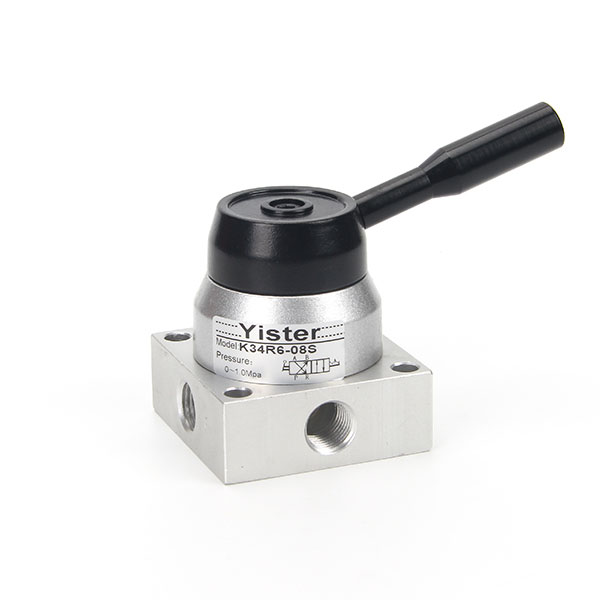

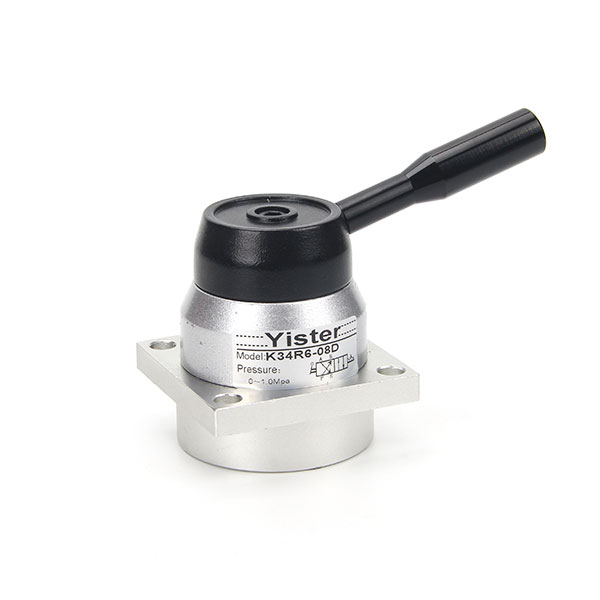

K34R6 Series Hand Rotary Valve
K24 K34 Series 1/4" Manual Control 4 Port Reversing Valve Pneumatic Hand Turn Switching Valve K34R6-8D

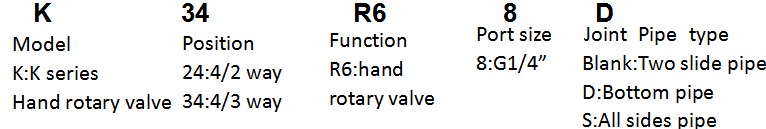

Order code

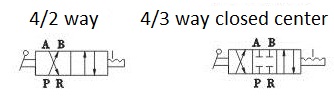

Symbol
Technical parameter
Model
K24R6-8
K34R6-8
K24R6-8D
K34R6-8D
K24R6-8S
K34R6-8S
Fluid
Air for hand rotating valve
Acting
Manual control
Port size
In=Out=G1/4”
Valve type
4/2 way
4/3 way
4/2 way
4/3 way
4/2 way
4/3 way
Pressure range
0.15-0.8MPa
Proof pressure
1.5MPa
Temperature
-10℃~60℃

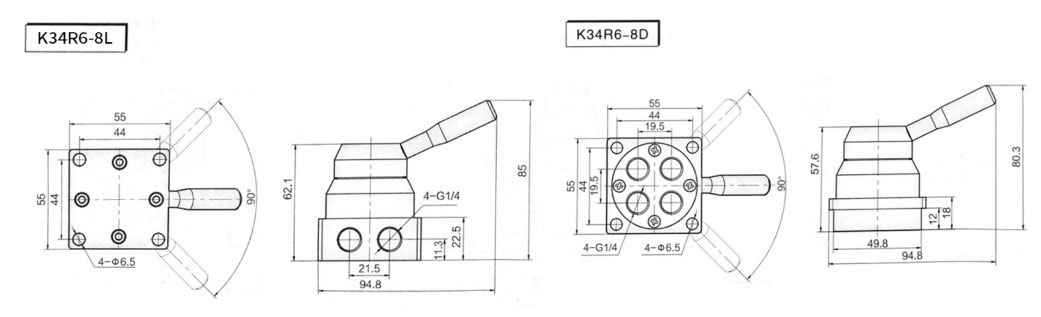

Dimension
Feature
.Three position four way Hand Switching K34R6/K34R8 reversing valve hand rotary valve is controlled by human or machine, to switch the direction of air flow.
.The material of valve body: Aluminum alloy.
.There are three connecting types for K34R6, bottom, back and front side, and each side.
.Different thread types can be offered according to customers requirements, e.g.: PT, NP
