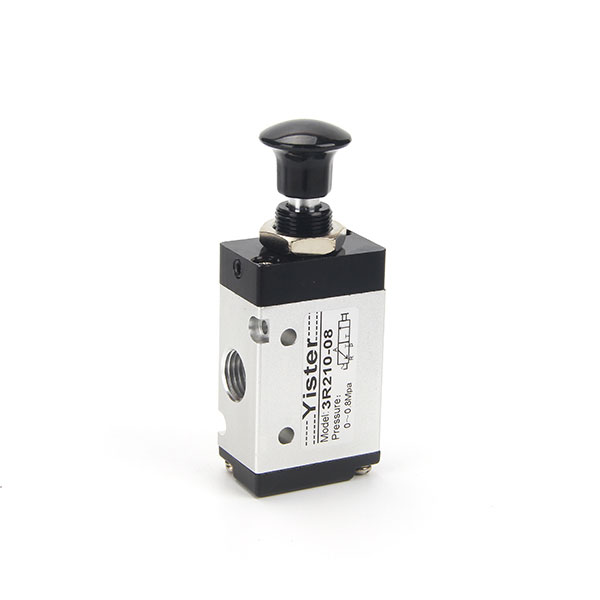

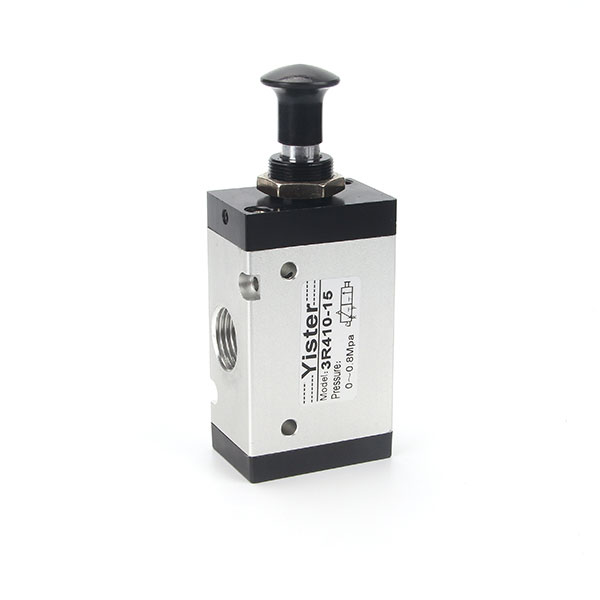

3R Series Hand Pull Valve
3/2 way 3R110-06/3R210-08/3R310-10/3R410-15 hand lever manual control pneumatic hand push pull air valve

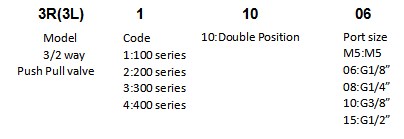

Order code
Symbol
Technical parameter
Model
3R110-M5
(3L110-M5)
3R110-06
(3L110-06)
3R210-06
(3L210-06)
3R210-08
(3L210-08)
3R310-08
(3L310-08)
3R310-10
(3L310-10)
3R410-15
(3L410-15)
Fluid
Air
Acting
Manual control direct acting type
Valve type
3/2 way push pull valve
Orifice size
5.5mm2
12mm2
14mm2
16mm2
25mm2
30mm2
50mm2
Lubrication
No required
Port size
M5
G1/8”
G1/4”
G3/8”
G1/2”
Protective class
IP65
Pressure range
0-0.8MPa
Proof pressure
1.2MPa
Material of body
Aluminum Alloy
Temperature
-20℃~60℃

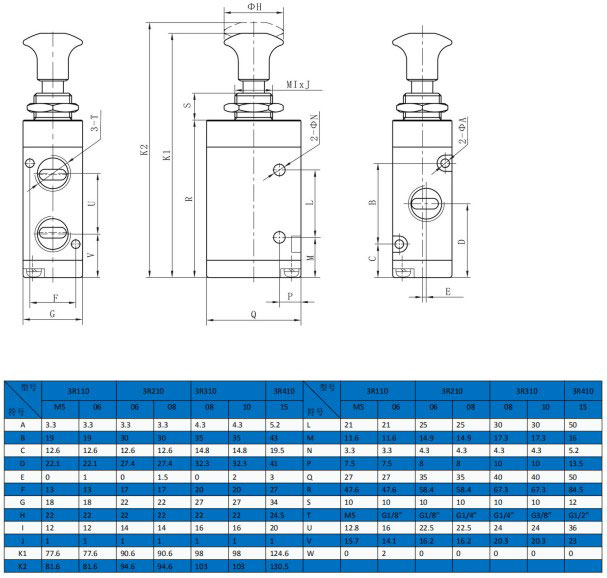

Dimension
Feature
3 way 2 position hand Push-pull valve is manual operation, smooth action, accurate and reliable positioning;
Sliding column structure, good sealing, small volume, light weight, easy disassembly;
Hand draw valve is panel installation, easy to install.
