HSV Series Hand Slide Valve
Airtac type 1/4" Aluminum 3 way 2 position HSV series pneumatic manual hand slide valve

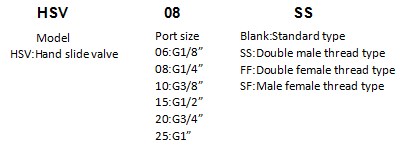

Order code
Symbol
Technical parameter
Model
HSV-06
HSV-06FF
HSV-06SF
HSV-06SS
HSV-08
HSV-08FF
HSV-08SF
HSV-08SS
HSV-10
HSV-10FF
HSV-10SF
HSV-10SS
HSV-15
HSV-15FF
HSV-15SF
HSV-15SS
HSV-20
HSV-20FF
HSV-20SF
HSV-20SS
HSV-25
HSV-25FF
HSV-25SF
HSV-25SS
Fluid
Air for Pipe Exhaust Valve
Acting
Manual control direct acting type
Valve type
3/2 way pneumatic switch hand sliding valve
Orifice size
12.0mm2
40.0mm2
62.0mm2
140.0mm2
250.0mm2
392.0mm2
Lubrication
No required
Port size
G1/8”
G1/4”
G3/8”
G1/2”
G3/4”
G1”
Protective class
IP65
Pressure range
0-1.0MPa
Proof pressure
1.5MPa
Material of body
Aluminum Alloy
Temperature
-20℃~60℃

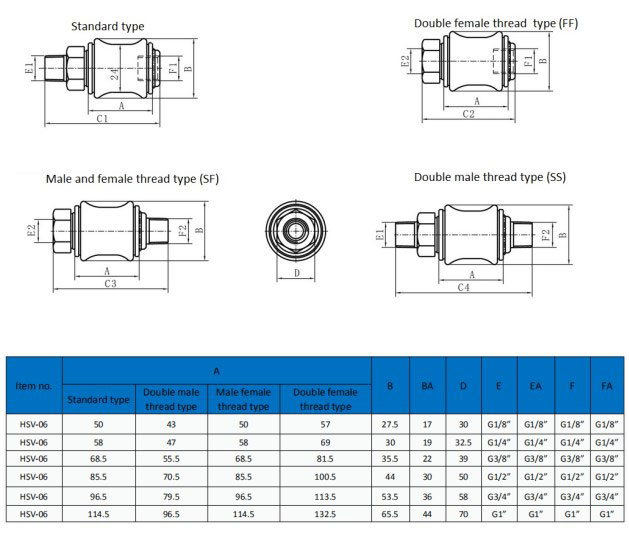

Dimension
Feature
HSV series two-position three-way manual slide valve, which is often used as a air source switch in the pipeline. When the air source is closed, the air pressure in the pneumatic system is exhausted simultaneously.
