TSV Series Hand Lever Valve

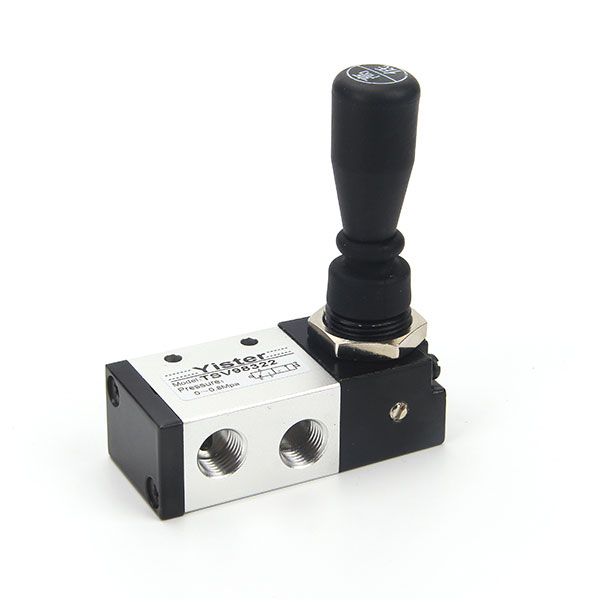

TSV86522 TSV98322 series 3/2 way Direct acting Manual Return Push-pull Switch Hand Lever Valve with spring return
Order code
Symbol
Technical parameter
Item no
TSV86321,TSV86322
Type
Hand Lever Valve
Port Size
1/4"
Operating Pressure
0 to 116 PSI
Operating Temperature
14 to 140°F (-10 to 60°C)
Action
Direct Acting
Working Medium
40 Micron Filtered Air or Inert Gas
Body Material
Anodized Aluminum
Seal Material
NBR (Buna N)
Lubrication
Not Required

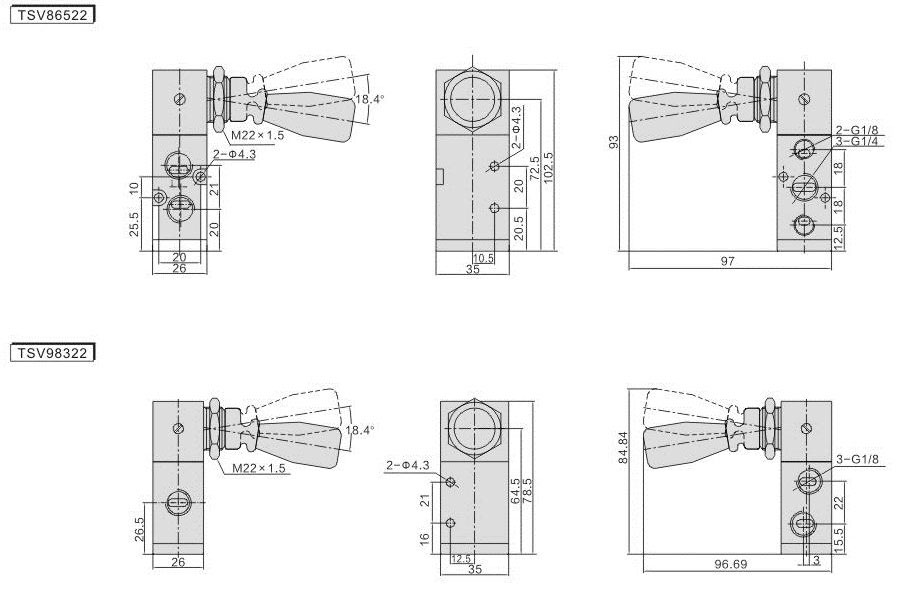

Dimension
Feature
.TSV series TSV86522 TSV98322 Hand Pull 5/2 way Pneumatic manual control valve is integral slot piston structure
.Process valve hole with special high precision finishing process
.Beautiful appearance
.Good reverser
.Reliable performance
.Seal wear can automatic compensate
