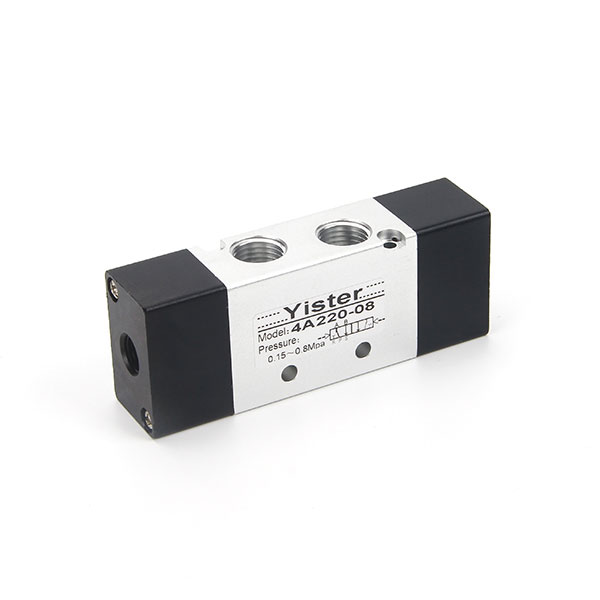

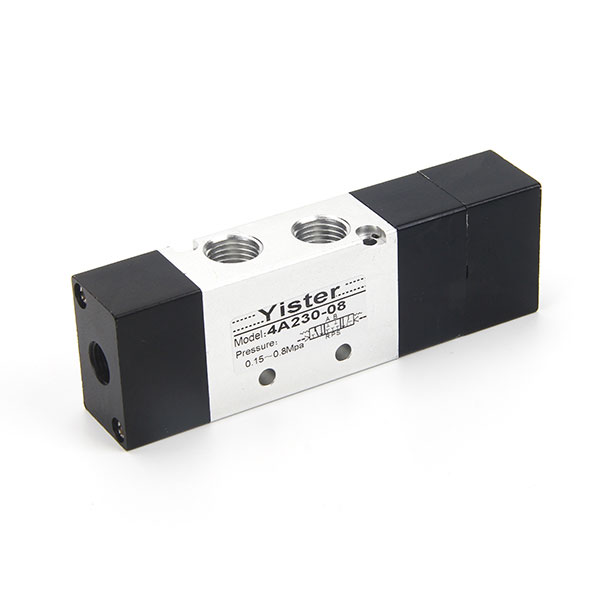

4A200 Series Air Control Valve
Airtac standard Two-position five-way Pneumatic single double solenoid air control valve 4A210-06/08 4A220-06/08 4A230-06/08

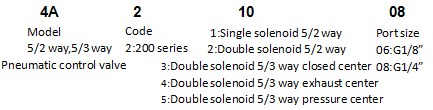

Order code

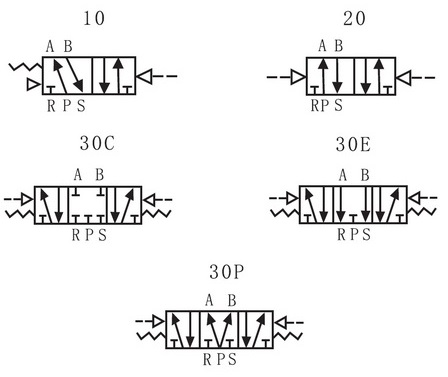

Symbol
Technical parameter
Model
4A210-06
4A220-06
4A230C-06
4A230E-06
4A230P-06
4A210-08
4A220-08
4A230C-08
4A230E-08
4A230P-08
Fluid
Air
Acting
Exterior control
Valve type
5/2 way
5/3 way
5/2 way
5/3 way
Orifice size
14mm2
12mm2
16mm2
12mm2
Lubrication
No required
Port size
In=out=Exhaust=G1/8”
In=out=Exhaust=G1/4”
Protective class
IP65
Pressure range
0.15-0.8MPa
Proof pressure
1.2MPa
Material of body
Aluminum Alloy
Temperature
-5℃~60℃
Response
speed
<0.05s

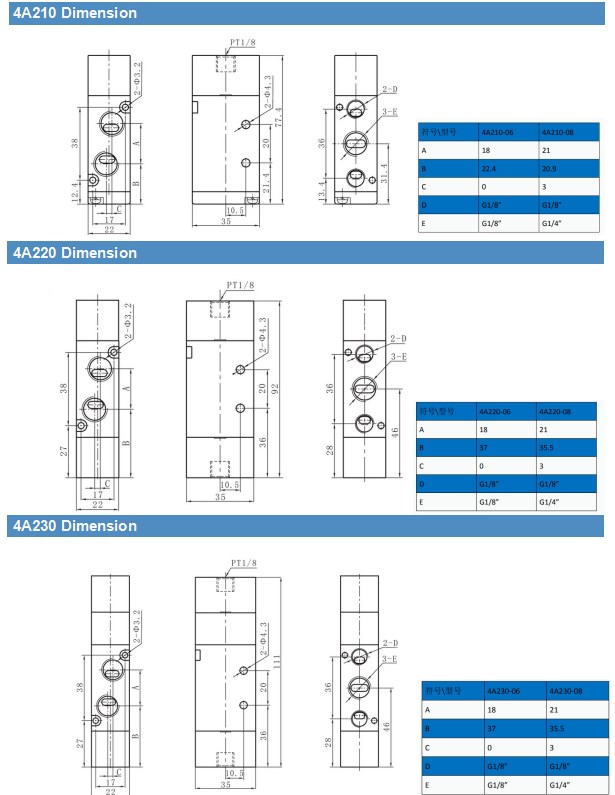

Dimension
Feature
.5 port air operated valve: 4A100, 4A200, 4A300 4A400series
. 4A210, 4A220, 4A230C, 4A230E, 4A230P series air operated valve.* Exterior control, 5 port 2 position or 5 port 3 position DC12V/24V Solenoid Air Control Valve Pneumatic Valve
.Port size: 1/8",1/4”
.Double air control 5/2 way valves have memory function;
. Internal hole adopts special processing technology which has
little attrition friction, low start pressure and long service life;
. No need to add oil for lubrication;
. Integrate with the manifold to save installation space.
