DNC Series Standard Cylinder
Festo type Aluminum double acting DNC Series ISO15552 Standard Pneumatic Cylinder

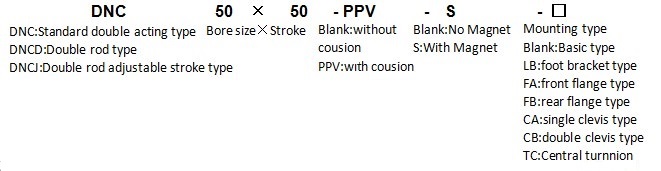

Order code

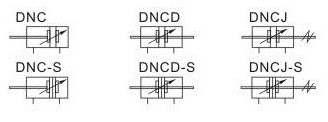

Symbol
Technical parameter
Bore size(mm)
32
40
50
63
80
100
Acting type
Double acting
Fluid
Air
Mounting type
DNC
Basic FA FB CA CB LB TC TCM1 CR FTC
DNCD,
DNCJ
Basic FA LB TC TCM1
Operating pressure
0.15~1.0MPa
Proof pressure
1.5MPa
Temperature ℃
-20~70
Speed range mm/s
30~800
Cushion type
Variable cushion
Adjustable cushion stroke
27mm
30mm
36mm
Port size
1/8”
1/4”
3/8”
1/2”
Stroke
Item no
Bore size
(mm)
Standard stroke
(mm)
Max.stroke
(mm)
Allowable stroke
(mm)
DNC
DNCD
DNCJ
32
25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500
1000
1800
40
25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800
1200
1800
50
25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
1200
1800
63
1500
1800
80
1500
1800
100
1500
1800

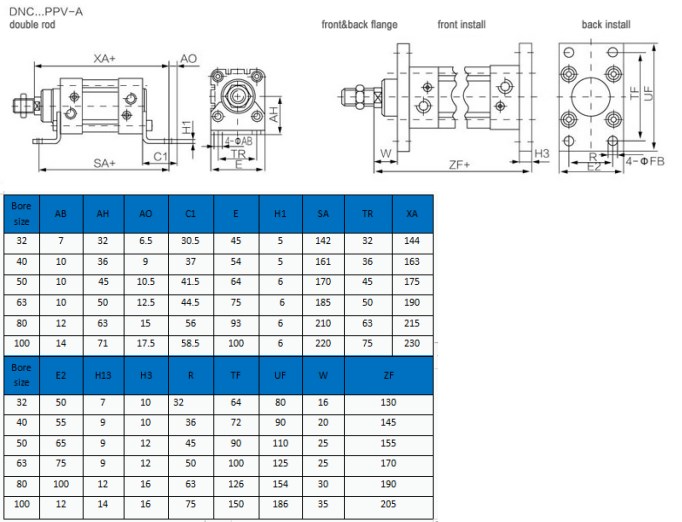

Dimension
Feature
.DNC Series Double Acting Magnetic ISO15552 Standard Pneumatic Cylinder is good quality and low price, and the high-quality sealing ring is durable
.DNC air cylinder is widely used in printing (tension control), semiconductor (spot welding machine, chip grinding), automation control, robot and other industries.
