4V400 Series Soleniod Valve
Internally Piloted Acting Type Single Electrical Control pneumatic valve 4V410-15

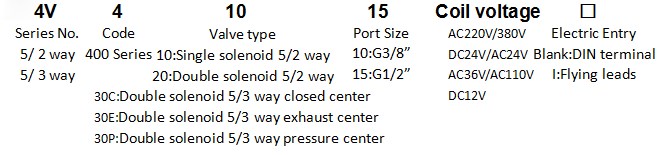

Order code

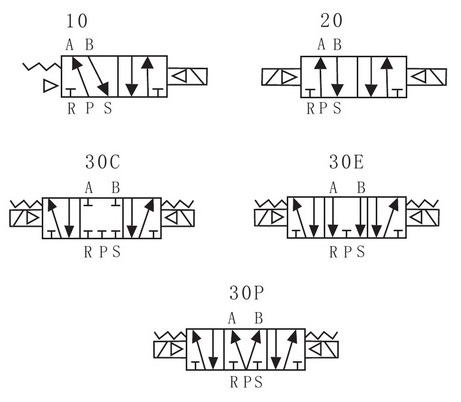

Symbol
Technical parameter
Model
4V410-15
4V420-15
4V430C-15
4V430E-15
4V430P-15
Fluid
Air
Acting
Internal pilot
Valve type
5/2 way
5/3 way
Orifice size
50mm2
30mm2
Lubrication
No required
Port size
In=out=G1/2
Protective class
IP65
Pressure range
0.15-0.8MPa(21~1145Psi)
Proof pressure
1.2MPa(170psi)
Material of body
Aluminum Alloy
Temperature
-5℃~60℃
Response speed
<0.05s

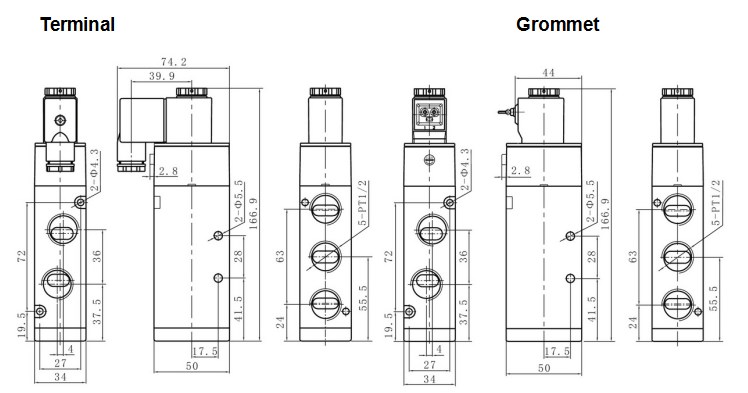

4V410 Dimension

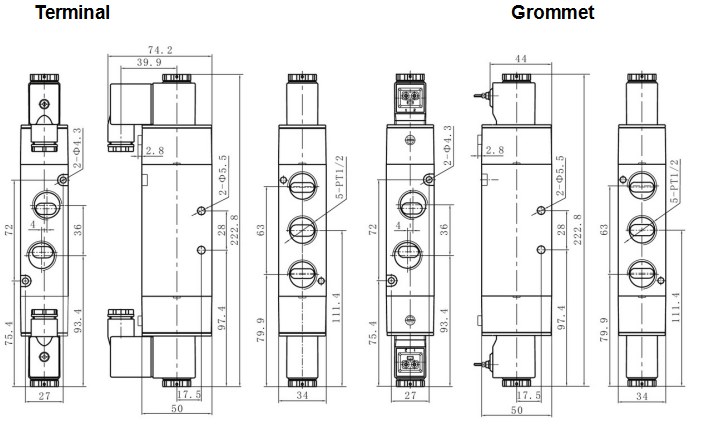

4V420 Dimension

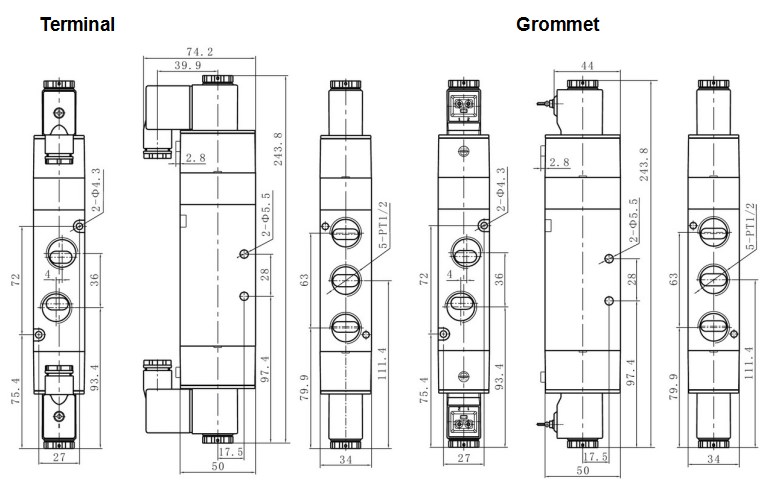

4V430 Dimension
Feature
1/2″ Inlet, Outlet and Exhaust Port. Five Way Two Positions (5/2 way) Solenoid Valve, Normally Closed with Spring Return.
Options such as lead wire connection, sub-plate mounting, metric port etc, are available.
